動作確認済みです

写真のもの以外付属品はありません

ノークレーム・ノーリターンでお願いします

発送は佐川の宅配便元払いのみです

同梱不可です

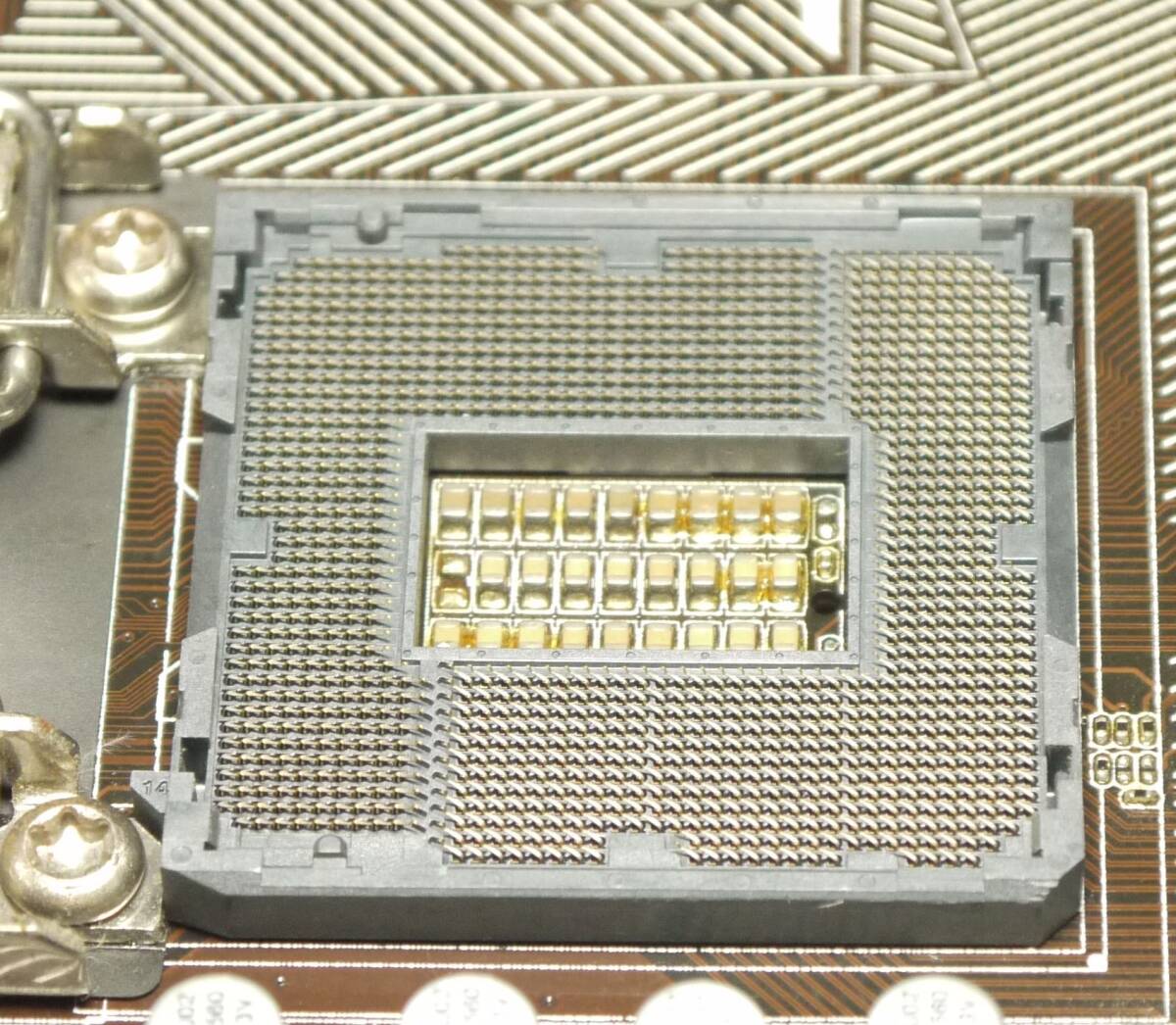

対応CPU
Intel Socket 1150for the 5th/New 4th/4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors,Supports Intel 22nm CPU,Supports Intel Turbo Boost Technology 2.0,* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.,* Refer to www.asus.com for CPU support list
搭載チップセット
Intel Z97
メインメモリ
4 x DIMM, Max. 32GB, DDR3- 3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory,Dual Channel Memory Architecture,Supports Intel Extreme Memory Profile (XMP),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
グラフィックス機能
- Supports DisplayPort with max. resolution 4960 x 2160 @ 24Hz / 3840 x 2160 @ 60Hz,Maximum shared memory of 512 MB,Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort ports,- Supports HDMI with max. resolution 4096 x 2160 @ 24Hz / 2560 x 1600 @ 60Hz,Supports up to 3 displays simultaneously,DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays,Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider,Integrated Graphics Processor- Intel HD Graphics support,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
マルチGPU対応
Supports NVIDIA Quad-GPU SLI Technology,Supports AMD Quad-GPU CrossFireX Technology
拡張スロット
1 x PCIe 2.0 x16 (x2 mode),2 x PCIe 2.0 x1 *1,2 x PCI,2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
ストレージ機能
Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology *2,Intel Z97 chipset : ,1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports,1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode),4 x SATA 6Gb/s port(s), gray,Support Raid 0, 1, 5, 10
LAN機能
Intel I218V, 1 x 1000BASE-T/100BASE-TX/10BASE-T LAN, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY),Gigabit Intel LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
オーディオ機能
Realtek ALC8928-Channel High Definition Audio CODEC featuring Crystal Sound 2,- DTS Ultra PC II,- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound,- Top notch audio sensation delivers according to the audio configuration,- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking,- Audio amplifier: Provides the highest-quality sound for headphone and speakers,- DTS Connect,- Unique de-pop circuit: Reduces start-up popping noise to audio outputs,Audio Feature :,- Optical S/PDIF out port(s) at back panel,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,- EMI protection cover to prevent electrical noise to affect the amplifier quality
USB機能
Intel Z97 chipset :,8 x USB 2.0/1.1 port(s) (2 at back panel, , 6 at mid-board),6 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 2 at mid-board)
独自機能
- ASUS DIGI+ VRM - 8Phase digital power design,- ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability,- Crystal Sound 2,- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.,- TPU switch,- EPU switch,- Remote GO!,- USB 3.0 Boost,- Industry leading Digital 8 Phase Power Design,- CPU Power Utility,- ASUS EZ Flash 2,- Push Notice,Media Streamer,Fan Xpert 3,- Disk Unlocker,- Precision Tweaker 2,ASUS 5X Protection :,- ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating,ASUS TPU :,- Auto Tuning,- Anti-Surge,- ASUS O.C. Tuner,ASUS Digital Power Design :,Special Memory O.C. Design,Overclocking Protection :,Turbo App,- GPU Boost,- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface,- ASUS C.P.R.(CPU Parameter Recall),5-Way Optimization by Dual Intelligent Processors 5,- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention,- ASUS ESD Guards - Enhanced ESD protection,ASUS EPU :,- EPU,ASUS Exclusive Features :,- AI Suite 3,- Turbo LAN,ASUS Quiet Thermal Solution :,- Stylish Fanless Design Heat-sink solution,ASUS EZ DIY :,- ASUS CrashFree BIOS 3,- ASUS UEFI BIOS EZ Mode,ASUS Q-Design :,- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED),- ASUS Q-Slot,- ASUS Q-DIMM,- ASUS Q-Connector
動作対応OS
Windows 8,Windows 8.1,Windows 7
背面インターフェース
1 x PS/2 keyboard/mouse combo port(s),1 x DVI-D,1 x D-Sub,1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),4 x USB 3.1 Gen 1 (blue),2 x USB 2.0,1 x Optical S/PDIF out,5 x Audio jack(s)
基板上インターフェース
1 x TPU switch(es),4 x Chassis Fan connector(s) (4 x 4-pin),1 x EPU switch(es),1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports,1 x M.2 Socket 3 for M Key, type 2260/2280 devices,1 x DRCT header(s),1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),1 x MemOK! button(s),1 x EZ XMP switch,3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s),1 x System panel(s) (Q-Connector),1 x Thunderbolt header(s),4 x SATA 6Gb/s connector(s),1 x TPM header,1 x CPU Fan connector(s) (1 x 4-pin),1 x CPU OPT Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Power-on button(s),1 x Clear CMOS jumper(s)
主な付属品
1 x Q-connector(s) (2 in 1),1 x SLI bridge(s),3 x SATA 6Gb/s cable(s),User´s manual,I/O Shield
BIOS機能
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS,
ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log,
F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
管理機能
WfM 2.0, DMI 2.7, WOL by PME, PXE
